Jackal

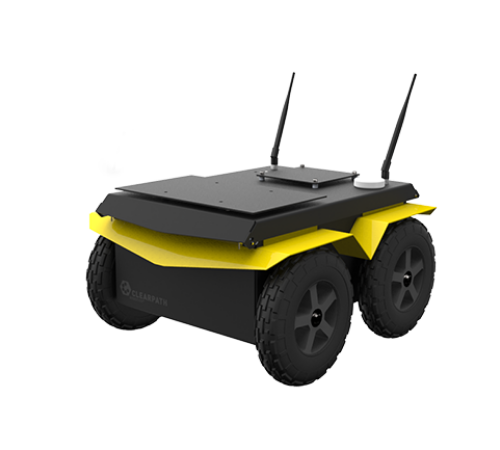

Clearpath Jackal

Lightweight robot for research. Jackal comes with a ready to go startup application, so students can control it immediately after purchase. Its open architecture and a wide range of sensors make it a perfect solution for many research projects. The manufacturer has adapted this platform to work with ROS and Gazebo, making it easy to simulate, program and control.



Parameter

Value

Dimensions

508 x 430 x 250 mm

Weight

17 kg

Carrying capacity

Up to 20 kg

Maximum speed

2 m/s

Control modes

Kinematic Commands —

velocity, angular velocity

Open Loop Motor Driver Commands —

voltage

Wheel Velocity Commands

Basic sensors

Power, wheel speed, GPS, gyroscope and accelerometer

Available ports

Ethernet, USB 3.0, RS232, IEEE1394

Typical power consumption

500 W

Battery

Lithium-ion 270 Wh

Typical battery life

Up to 2 hours

Expansion possibilities:

  • Additional battery and external charger
  • Lightweight Kinova robotic arm
  • Sensors: LIDAR, IMU, GPS, etc.
  • 2D / 3D cameras
  • Software for autonomous operation, navigation, image processing and teleoperation
