Siemens S7-1200 G2 Training Kit
Siemens S7-1200 G2 Training Kit
The Siemens SIMATIC S7-1200 G2 training set is a complete set of PLC controllers and software designed for practical PLC programming education at universities of technology. It uses STEP 7 Professional and WinCC Advanced/Unified software, enabling laboratory classes based on technologies used in industrial automation.
The training set is intended for exercises covering PLC systems, automation programming, and process visualization. Combined with TIA Portal, it allows students to work through the entire process – from hardware configuration and control program development, through commissioning and diagnostics, to the preparation of an operator interface.
Please note:
- Individual units can also be purchased – please contact us for details.
- The sets are available exclusively to schools and universities.
- The sets do not include a power supply.
INQUIRY
| Parameter | Variant 1 DC/DC/DC 6ES7214-1AG50-4AB1 | Variant 2 | Variant 3 DC/DC/RELAY 6ES7214-1HG50-4AB1 |
|---|---|---|---|
| SIMATIC S7-1200 G2 – CPU 1214C | |||
| Central processing unit | 6 × SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC | 6 × SIMATIC S7-1200 G2 CPU 1214C AC/DC/RELAY | 6 × SIMATIC S7-1200 G2 CPU 1214C DC/DC/RELAY |
| Article number | 6ES7214-1AH50-0XB0 | 6ES7214-1BH50-0XB0 | 6ES7214-1HH50-0XB0 |
| Power supply | 20.4–28.8 V DC | 85–264 V AC, 47–63 Hz | 20.4–28.8 V DC |
| Digital inputs | 14 × DI 24 V DC | 14 × DI 24 V DC | 14 × DI 24 V DC |
| Digital outputs | 10 × DO 24 V DC | 10 × relay DO, 2 A | 10 × relay DO, 2 A |
| Program memory | 250 KB | 250 KB | 250 KB |
| Data memory | 750 KB | 750 KB | 750 KB |
| Retentive memory | 20 KB | 20 KB | 20 KB |

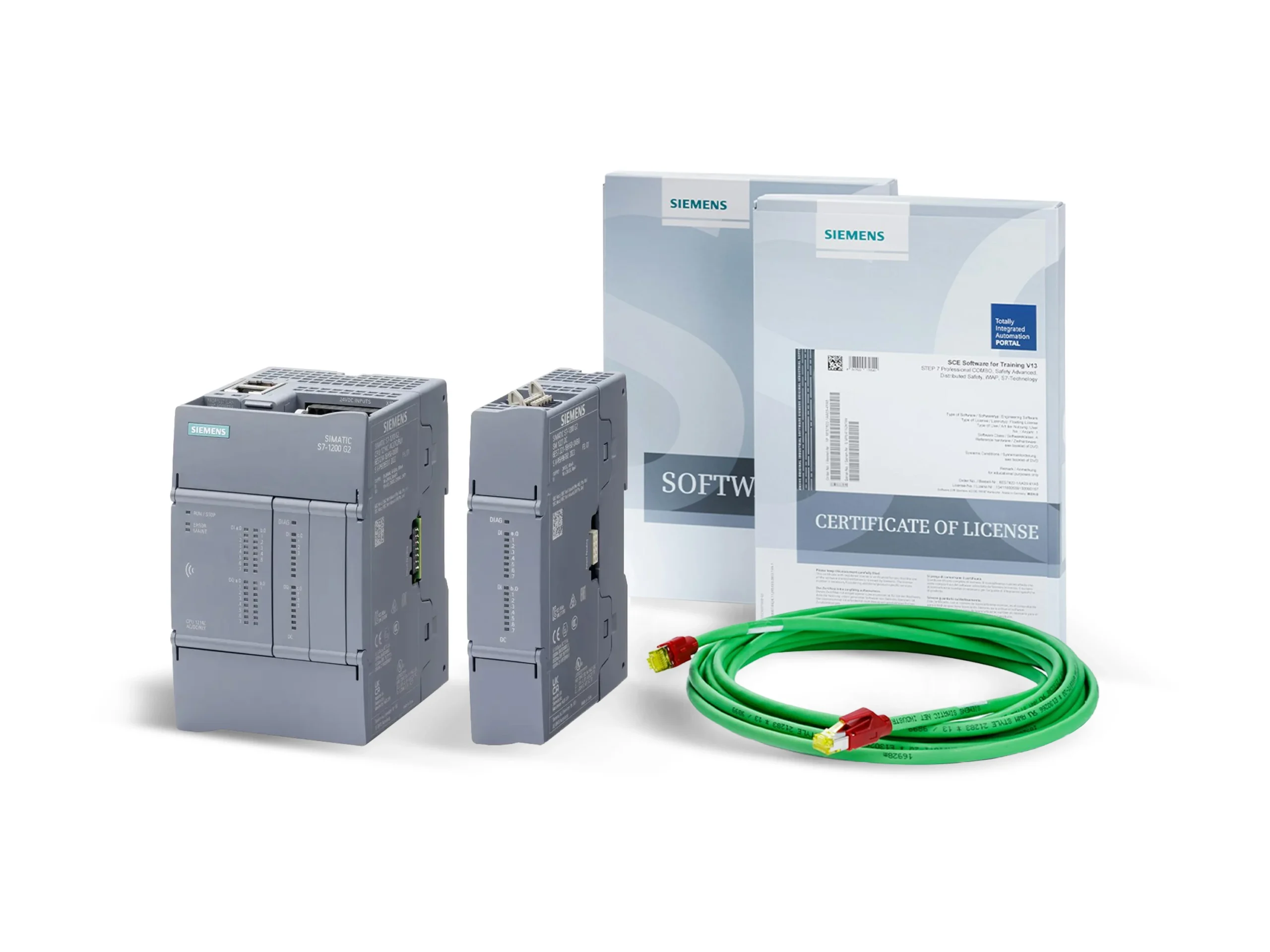

| Other components included in the set | |||
| Analog module | 6 × SIMATIC S7-1200 G2 SM 1233 analog IO, 4 AI / 4 AO | ||
| Software | 6 × STEP 7 Professional and WinCC Advanced/Unified Engineering and Runtime Software for Training | ||
| Ethernet cable | 6 × SIMATIC NET Industrial Ethernet TP XP Cord RJ45/RJ45 CAT 6A, 6 m | ||
The sets do not include a power supply!
Educational applications
With Industrial Ethernet cables and training licenses for STEP 7 Professional and WinCC Advanced/Unified, the set can serve as a basis for laboratory workstations, student projects, and practical exercises in automation and Industry 4.0.
The training set can be used during laboratory classes, project-based courses, and diploma projects related to automation and control. It enables students to work independently with the PLC.
The workstation can be used for exercises including:
- PLC programming in TIA Portal,
- creating and testing control systems,
- program monitoring and diagnostics,
- creating HMI visualizations in WinCC.
We recommend mounting the PLCs on our Basic PLC Training Workstation and using them together with actuator components.
