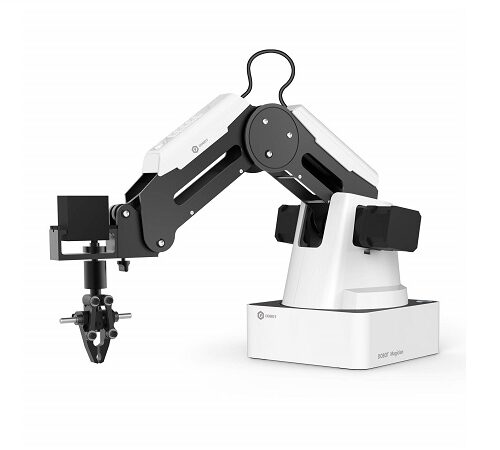

Dobot Magician
Dobot Magician is an innovative tool that aligns perfectly with the needs of universities and technical schools. Its advanced capabilities allow for practical applications in laboratories and scientific research, while also enhancing programming skills. The versatility of the robots enables exploration of various uses, from robotics to 3D printing, and its intuitive software makes the Dobot Magician accessible to all – both experts and beginner roboticists.
Dobot Magician robot arm, with a payload capacity of up to 0.5kg, offers an incredibly intuitive solution that’s ready to use right out of the box. You can control this device in various ways, including through a USB port or wirelessly via Bluetooth, such as with a smartphone and a dedicated application. Thanks to a straightforward end-effector swapping system, the Dobot Magician can perform a variety of tasks, such as drawing, laser engraving (available in the expanded kit), or even object manipulation.
With Dobot Studio software, you have the capability to control, configure, and adjust the robot arm’s parameters without the need for any coding. The USB port facilitates communication through a serial interface with the Robot Blocky developer platform. Additionally, users have the flexibility to develop software in multiple programming languages, including C++, C#, Java, or Python.
The robot comes in two versions – basic and extended, with the latter being equipped with additional features. The differences in the equipment of both versions of the robot are as follows:
|
|
Basic Set |
Extended Set |
|
Robot arm: |
x |
x |
|
Suction Cup End-Effector: |
x |
x |
|
Gripper: |
x |
x |
|
Drawing kit: |
x |
x |
|
3D Printing kit: |
x |
x |
|
Bluetooth Module: |
|
x |
|
Laser End-Effector: |
|
x |
|
WiFi Module: |
|
x |
|
Joystick: |
|
x |
Dobot Magician parameters:
|
Parameter |
Value |
|
Number of Axes |
4 |
|
Weight |
3,4 kg |
|
Dimensions |
158 mm x 158 mm |
|
Max. Payload |
500g |
|
Max. Reach |
320mm |
|
Repeatability |
+/- 0,2mm |
|
Communication interface |
USB / Wi-Fi*/ Bluetooth* |
|
Assembly |
Desktop placement |
|
Power Supply |
100V – 240V, 50/60 HZ |
|
Power In |
12V / 6.5A DC |
|
Power Consumption |
Up to 78 W |
|
Operating Temperature |
From -10 °C to 60 °C |
|
Software |
DobotLab DobotBlockly DobotStudio Repetier Host GrblController3.6 |
|
I/O Expansion Interfaces |
I/O Expansion Interfaces 10 x I/O with PWM function and analog input 4 x 12 V power outputs UART Interface Reset 2x Stepper |
*Available only in Advanced version
