Dobot Magician Go

Dobot Magician Go

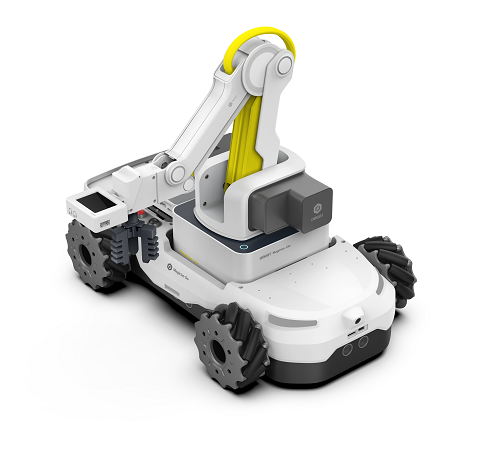

Dobot Magician Go is a mobile platform that can be integrated with the Magician Lite arm. It features two cameras – one at the front of the chassis and another at the end of the robot arm, expanding the range of potential applications through advanced artificial intelligence.

Utilizing mecanum wheels, Magician Go allows for lateral, diagonal, and rotational movements without the need for precise wheel control. This enables operations even in very tight spaces. The platform is equipped with a built-in distance traveled counter, allowing real-time transmission of the robot’s current position data. Thanks to precise simulation of a dynamic environment, users can track the platform’s movements and easily plan routes.

Thanks to the artificial intelligence algorithm, image processing, text analysis, and facial recognition are possible even without a network connection. This enables road recognition, detection of traffic signs, pedestrian identification, and control of the robot arm during movement.

Dobot Magician Go technical parameters:

Parameter

Value

Weight

5kg

Communication Interface

2.4GHz remote control, USB serial, Bluetooth

Control Mode

2.4G remote controller, Bluetooth, wired control, script control

Dimensions

463mm x 293mm x 125mm

Maximum Load

5kg

Rated Power

60W

Time of Endurance

150min

Maximum Speed

1m/s

Rated Voltage

12V

Working Temperature

0-45°C

Software

DobotLab (Python/Blockly)
