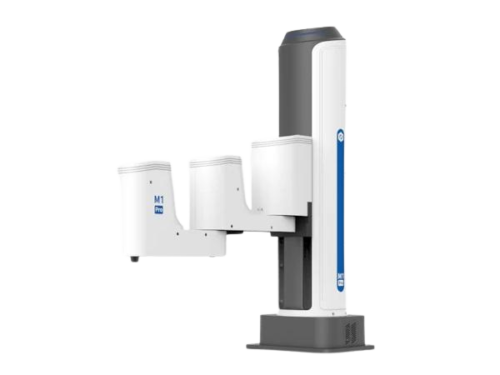

Dobot M1 Pro
Dobot M1 Pro
Dobot M1 Pro is an advanced second-generation SCARA robot equipped with an integrated dynamic algorithm and an operating system that enables collision detection. It is ideal for industrial applications requiring high-speed operations.
Thanks to its simple design, collision detection capability, and hand-guiding learning function, the M1 Pro is characterized by ease of use and high intelligence.
INQUIRY
Your data is the data that allows us to make the first business contact. All data provided in the form are treated as confidential. Personal data appearing in the form will be processed in accordance with our privacy policy, available at www.edu4industry.com.
| Parameter | Value |
|---|---|
| Payload | 1500 g |
| Maximum Reach | 400 mm |
| Positioning Accuracy | ± 0.02 mm |
| Communication | TCP/IP, Modbus TCP, Modbus RTU |
| Operating Voltage | 48 V |
| Power | 192 W |
| Joint Range J1 | ± 85° |
| Joint Range J2 | ± 135° |
| Joint Range J3 | 5 – 245 mm |
| Joint Range J4 | ± 360° |
| Maximum Speed (J1, J2) | 180°/s |
| Maximum Speed J3 | 1000 mm/s |
| Maximum Speed J4 | 1000°/s |
| Controller Interfaces | 16 × DI, 16 × DO, 1 × ABZ, 2 × Ethernet, 2 × USB 2.0 |
| Software | DobotSCStudio, DobotStudio2020 |
| Operating Temperature | -25°C – 55°C |
| Storage Temperature | 0°C – 40°C |
| Base Dimensions | 230 × 175 mm |
